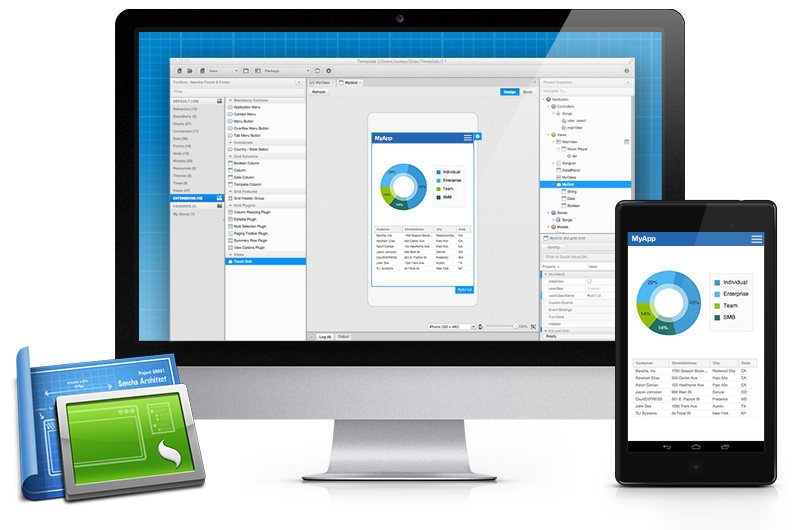

Image source: http://sencha.com

WebSharper Extensions for Sencha Architect Insider Pro

Integrate your Sencha Touch and Ext JS user interfaces within your WebSharper applications easily with a single line of code.

Tool home Example

Nuget

Install-Package WebSharper.SenchaArchitect

Bringing the best of WYSIWYG editors to WebSharper

Create awesome user interfaces in Sencha Architect and use them in your WebSharper applications in a type-safe and robust manner. True WYSIWYG for your web and mobile applications, while keeping ALL of your application logic in F#.

(Note: separate licensing for Sencha Tools is required. Please consult the Sencha website for more details.)

Key benefits

  • View and model always in sync: change your UI code in Sencha Architect, and see what further changes you need to make to keep your application consistent and semantically correct.
  • Build all or incrementally: Add UI controls in your Sencha Architect project, and access them in your F# code with full code completion.
  • Seamless server calls: Write your backend in F# and call it from your Sencha UI - all in F#.
  • Unprecedented efficiency: your UI and your application code has never been closer, UI updates hit your F# code instantly.

Using Sencha Architect in WebSharper projects

Quick steps to get started

  • Create a WebSharper Sitelet Website project. In Main.fs, remove the About action, page and sitelet definition. Replace Site.HomePage inserted content with only Div [new Controls.EntryPoint()].

  • Create new Ext JS project in Sencha Architect, set an appFolder value, save and publish it to your website project folder.

  • Add a script reference to your app.js in the Main.html template after the WebSharper scripts placeholder meta tag:

    1

    <script type="text/javascript" src="app.js"></script>
  • Install the WebSharper.ExtJS NuGet package (requires a WebSharper license). In Client.fs, add these attributes on the Client module to tell WebSharper to automatically include the basic Ext JS CSS files:

    1
    2
    3
    4
    5

    open WebSharper.ExtJS

    [<Require(typeof<Resources.ExtAll>)>]
    [<Require(typeof<Resources.ExtThemeNeptune>)>]
    [<Require(typeof<Resources.ExtAllNeptuneCss>)>]
  • In the Client module, replace the Main function's body with the following code, where InitMainView, a function to be added before Main, will contain your UI logic.

    1
    2
    3

        Div [] |>! OnAfterRender (fun el ->
            Ext.OnReady(As InitMainView, null, null)
        )

Raw access to UI components

In InitMainView, you can now access components in your UI design, set event handlers, or add other application logic using raw, string-based accessors:

1
2
3
let view = Ext.GetCmp("MainView") :?> Ext.container.Viewport
let form = view.GetComponent("form") :?> Ext.form.Panel
...

However, working with these string accessors is a hassle and also very error-prone.

Type-safe access to UI components:

Instead, you can access components from your Sencha Architect project in a robust way using the type provider from WebSharper Extensions for Sencha Architect:

  1. Install the WebSharper.SenchaArchitect NuGet package into your WebSharper project.

  2. Add the line type App = SenchaArchitect.App<"/app.js"> where you specify a correct relative or absoute path to your Sencha Architect output app.js file. (be sure to have opened the WebSharper namespace beforehand.)

This brings all your components from your Sencha Architect UI project into F# scope. You can now do:

1
2
let view = App.View.MainView
...

Features

  1. Access components having their id config set as static properties on their respective View wrapper types.
  2. Access components having their itemId config set as instance properties on the wrapper object of the parent component. Items can be in the items, dockedItems or columns configs, the menu of a split button or the tools config of a panel.
  3. Ext.form.Panel wrappers have helper functions for getting and setting their named field values. A FieldValues nested type is provided for this.
  4. A wrapper type gets provided only for components having items or named fields. Use the self property to get the Ext type for the component. Another option is to pass the Inherit = true argument to the type provider. In this case the wrapper objects inherit their framework type.
  5. Accessor for stores using Ext.getStore by storeId as static properties on the Store provided type.
  6. Provided types for models. The types nested in RawModel are creating raw models (plain JS objects), while Model contains wrappers around the Ext.data.Model objects with typed getters/setters for the fields of the model object. Convert between them with the .ToModel() and .GetData() helper methods.

Additional tips

If you want to create a sitelet-based website with different Ext JS viewports loaded on the pages, use the "Unmark as Initial View" option in Sencha Architect. Now, running app.js does not create a view automatically. You can create a full screen view by passing the element you are inserting with a Web.Control class as a RenderTo config to the constructor of the wrapper type of the view.

1
2
3
4
5
6
7
8
let MainView renderTo =
    let view = App.View.MainView(ExtCfg.container.Viewport(RenderTo = renderTo))
    // ...

let Main () =
    Div [] |>! OnAfterRender (fun el ->
        Ext.OnReady(()fun () -> MainView el.Body), null, null)
    )
